Product：

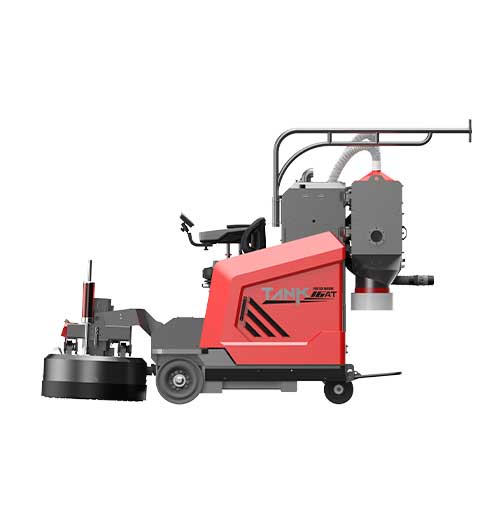

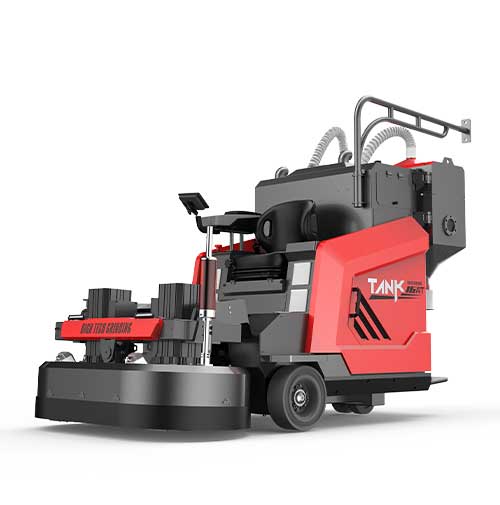

AT16 Autonomous Floor Grinder

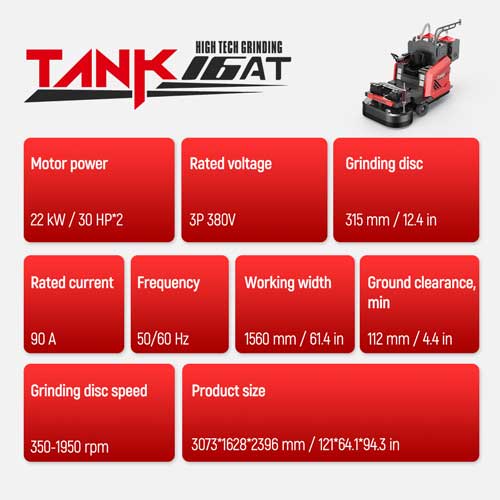

Motor power:

22 kW /30 HP*2

Rated voltage:

3P 380V

Rated current:

90A

Frequency:

50/60Hz

Inverter horsepower:

Working width:

1560 mm/61.4 in

Grinding disc：

315 mm/12.4 in*4

Grinding disc speed min:

350 rpm

Grinding disc speed max:

1950 rpm

Ground clearance, min:

112 mm/4.4in

Product size length:

3073 mm/121 in

Product size width:

1628 mm/64.1 in

Product size height:

2396 mm/94.3 in

Weight (complete product w/o side packed articles):

Gearbox: 850kg, Frame: 1926.5 Total weight: 2776.5kg
