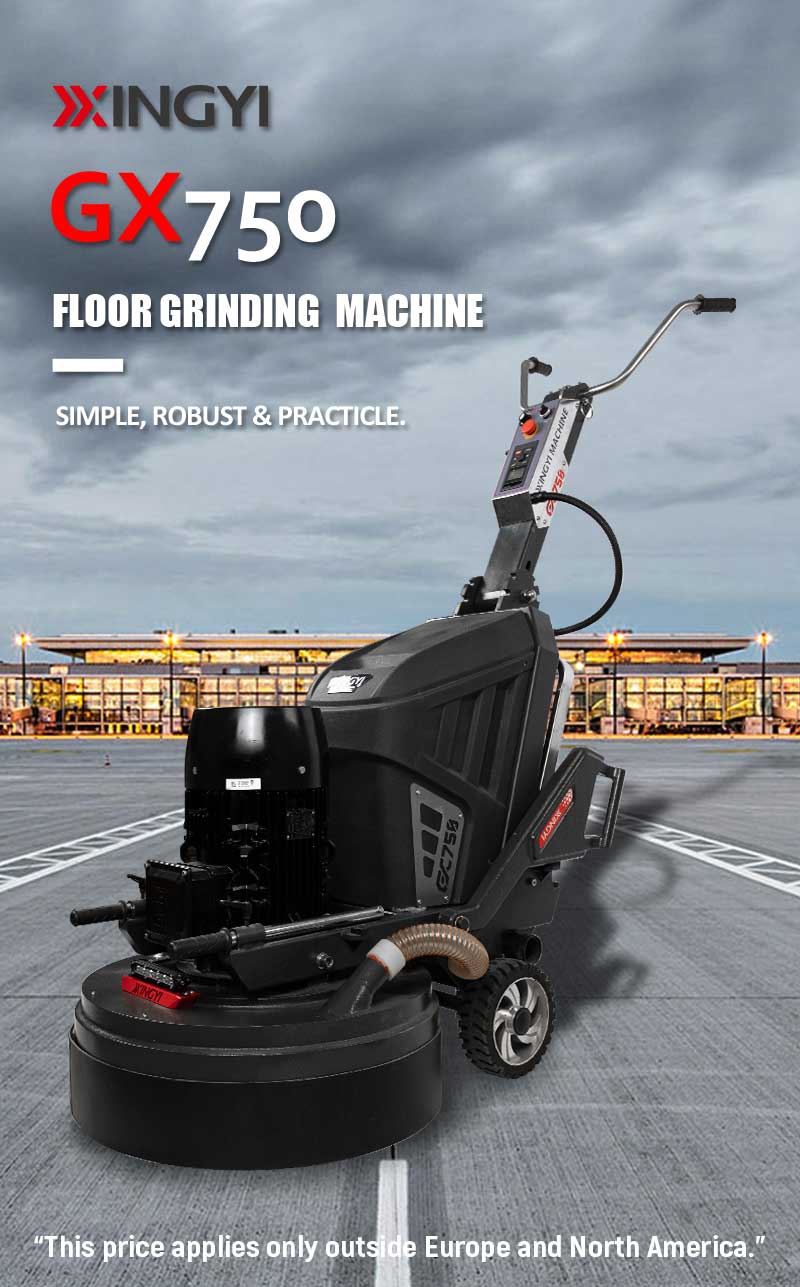

GX 750
Planetary Grinding Machine

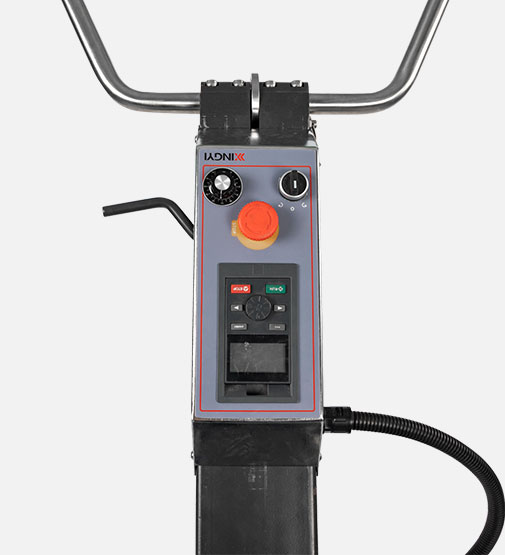

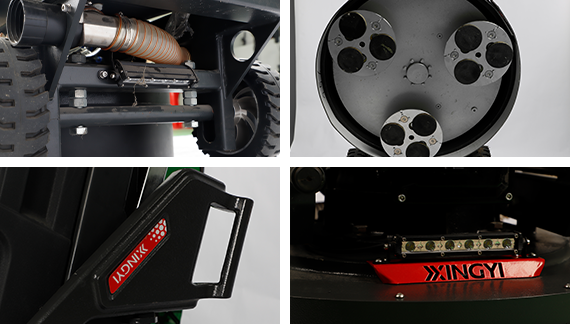

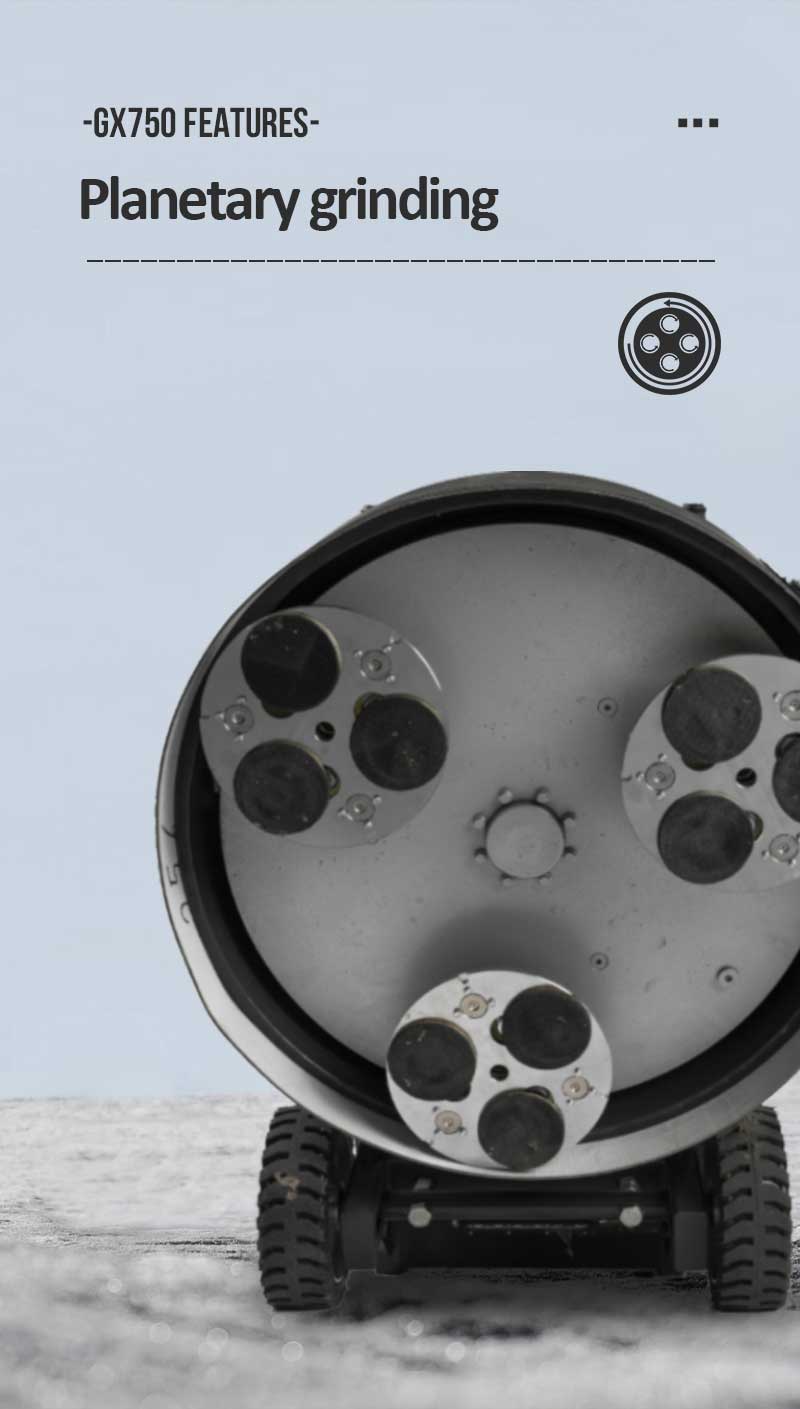

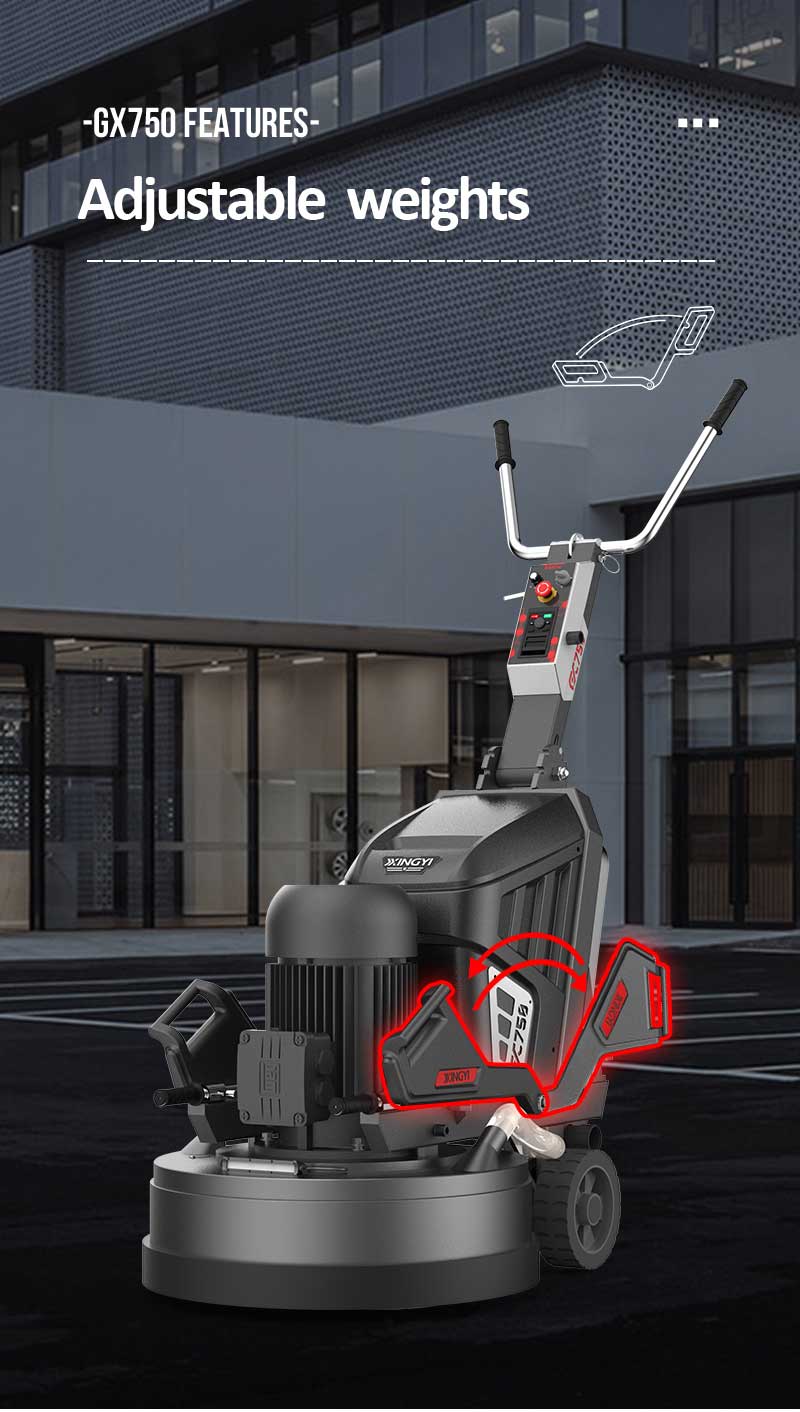

Same with other GX series machine, GX750 is a heavy-duty equipment for your polishing project, promoted from old Q/X series of XINGYI sold in the market for 16 years. Thanks to XINGYI dual Alloy gearbox casting technology, the machine has 4 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine.
|

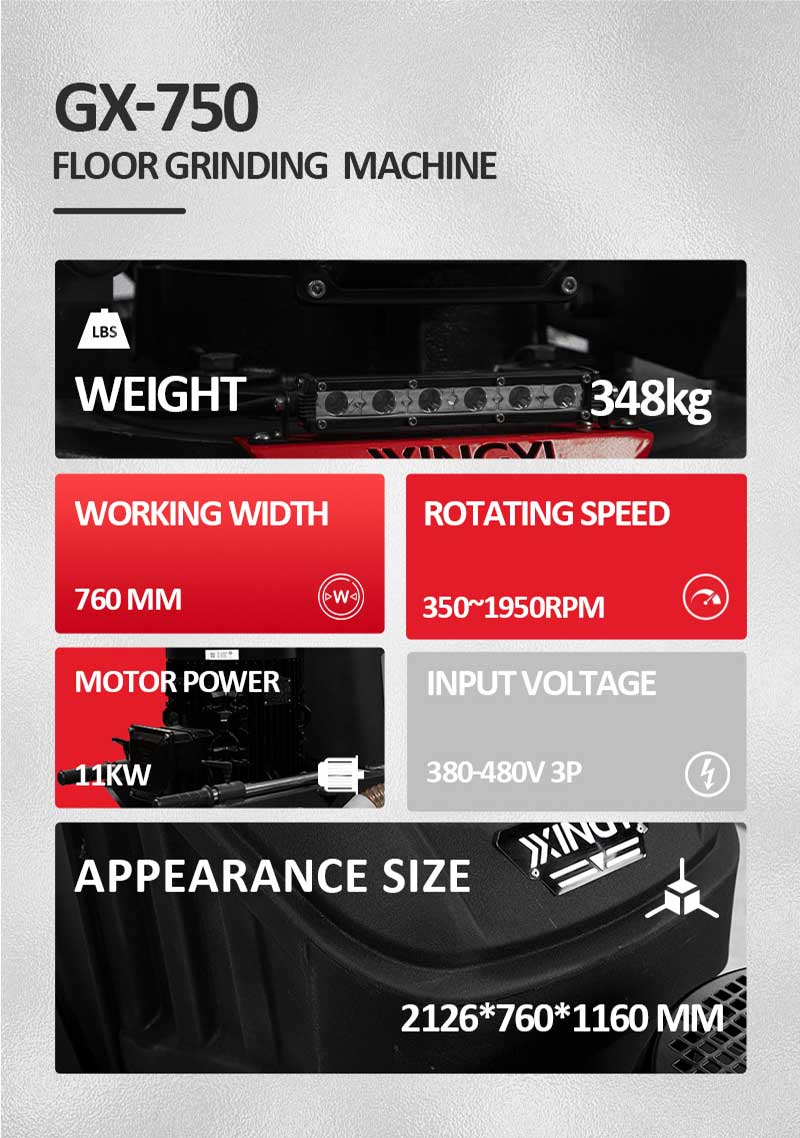

Product |
GX 750 |
|
Working Width |
760mm |
|
Motor Power |
11kw |
|
Voltage |
380-480V 3P/200-240V 3P/ 200-240V 1P |
|
Frequency |
50/60hz |
|
Rotating Speed |
350 - 1950rpm/ 350 - 1500rpm
|
|
Grinding Disc |
256mm*3 |
|
Mode of Operation |
Walk-behind |
|
Water Tank |
30L |
|
Weight |
348kg |
|
Appearance Size |
2126*760*1160mm |
